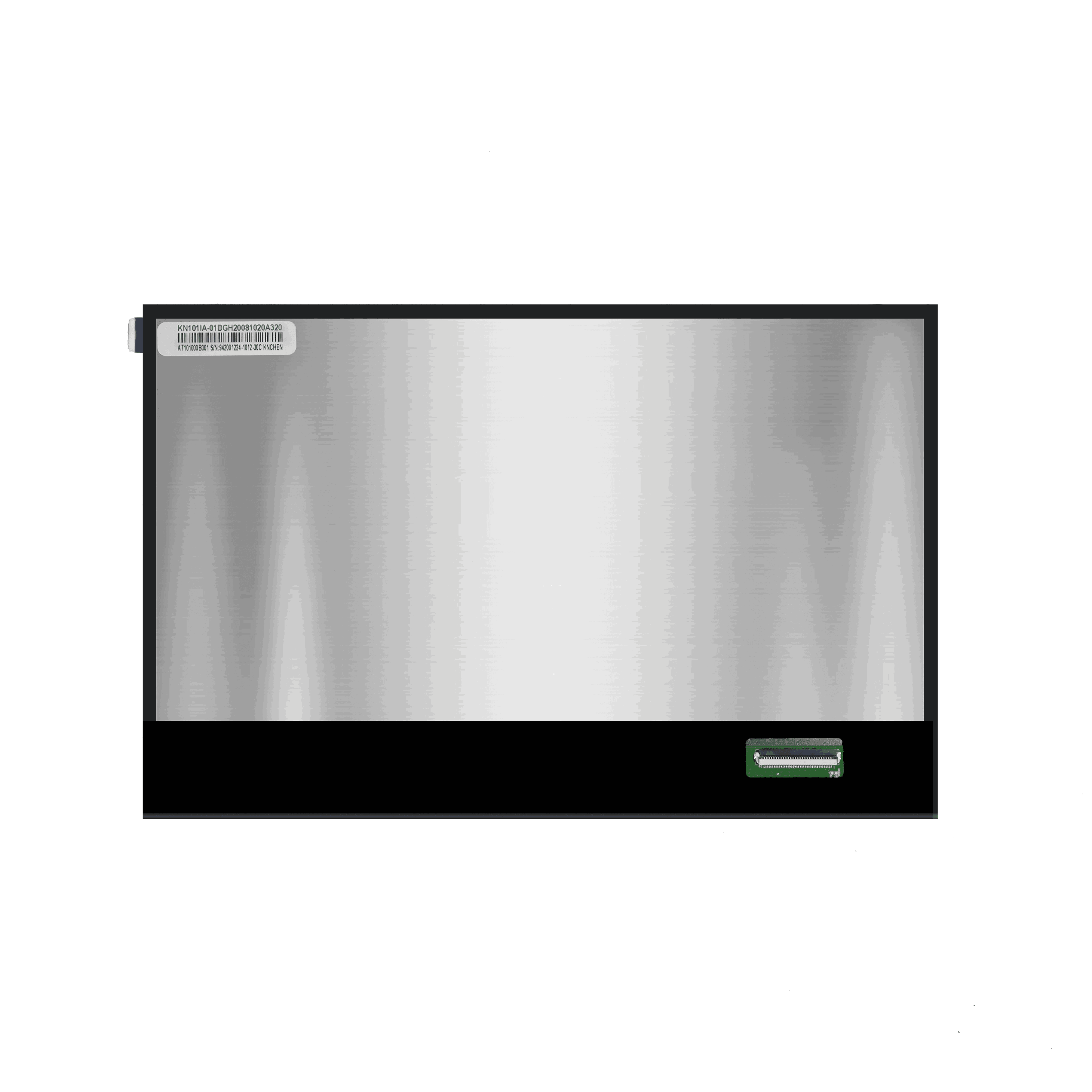

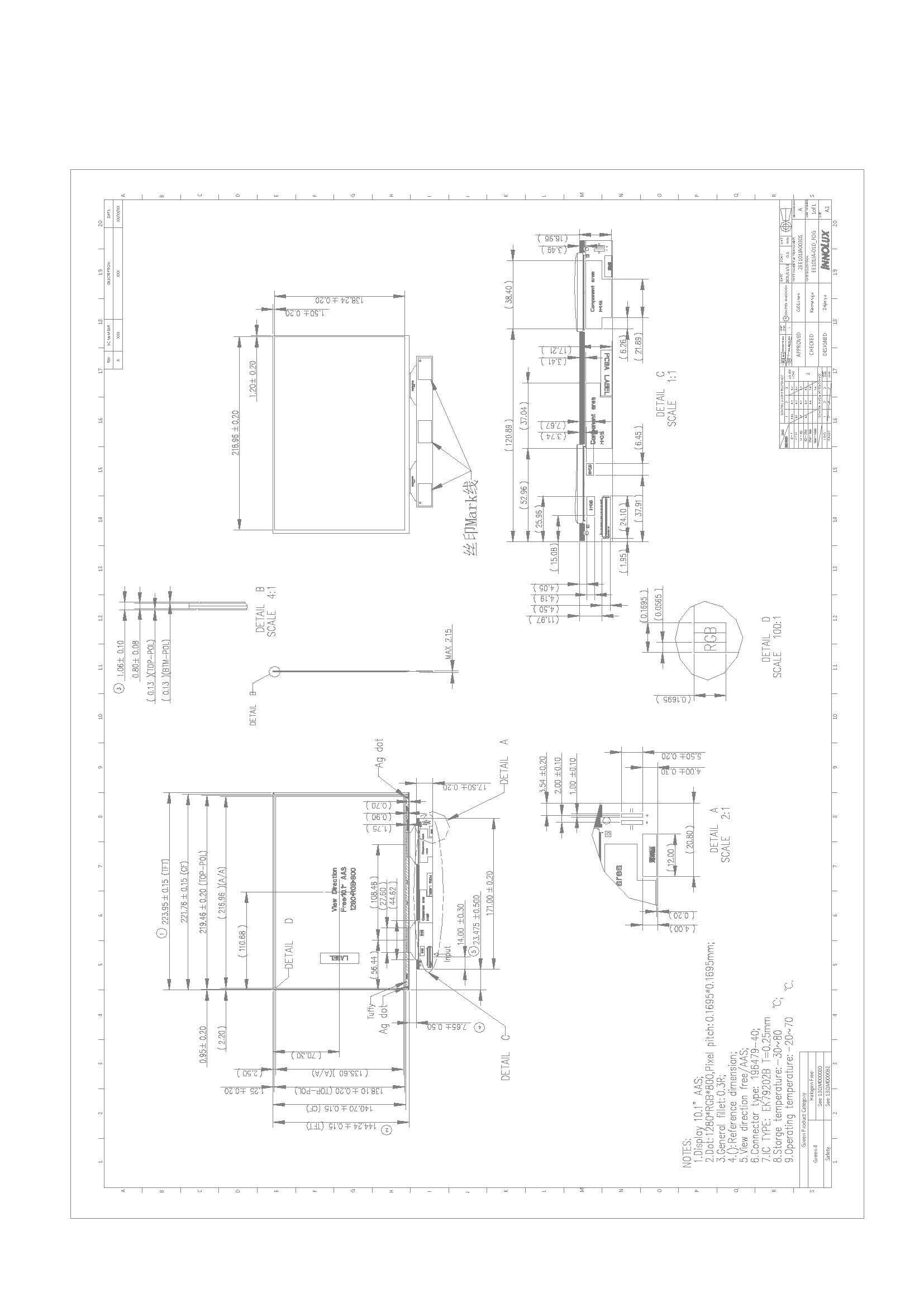

10.1 Inch TFT LCD Module Panel Wholesale
Model Number :
YY101IAD25WX350IDisplay Size :
10.1 inch (Diagonal)Brightness :
350cd/m2Resolution :
1280*800Thickness :
25 MMDriver Element :
a-Si TFT active matrixWarranty :
12 MonthsManufacturer :
CloudSense OptiTechA 40pin connector is used for the module electronics interface. This model used 196479-40041-3 manufactured by P2 connector
I: input, O: output, P: Power
|
Symbol
|
I/O
|
Function
|
|
NC
|
---
|
No connection
|
|
VDD
|
P
|
Power Supply
|
|
VDD
|
P
|
Power Supply
|
|
NC
|
---
|
Only for INX test
|
|
NC
|
---
|
Only for INX test
|
|
NC
|
---
|
Only for INX test
|
|
GND
|
P
|
Ground
|
|
Rxin0-
|
I
|
-LVDS Differential Data Input
|
|
Rxin0+
|
I
|
+LVDS Differential Data Input
|
|
GND
|
P
|
Ground
|
|
Rxin1-
|
I
|
-LVDS Differential Data Input
|
|
Rxin1+
|
I
|
+LVDS Differential Data Input
|
|
GND
|
P
|
Ground
|
|
Rxin2-
|
I
|
-LVDS Differential Data Input
|
|
Rxin2+
|
I
|
+LVDS Differential Data Input
|
|
GND
|
P
|
Ground
|
|
RxCLK-
|
I
|
-LVDS Differential Clock Input
|
|
RxCLK+
|
I
|
+LVDS Differential Clock Input
|
|
GND
|
P
|
Ground
|
|
Rxin3-
|
I
|
-LVDS Differential Data Input
|
|
Rxin3+
|
I
|
+LVDS Differential Data Input
|
|
GND
|
P
|
Ground
|
|
NC
|
---
|
No connection
|
|
NC
|
---
|
No connection
|
|
GND
|
P
|
Ground
|
|
NC
|
---
|
No connection
|
|
NC
|
---
|
No connection
|
|
NC
|
---
|
No connection
|
|
AVDD
|
P
|
Power for Analog Circuit
|
|
GND
|
P
|
Ground
|
|
LED-
|
P
|
LED Cathode
|
|
LED-
|
P
|
LED Cathode
|
|
NC
|
---
|
No connection
|
|
NC
|
---
|
No connection
|
|
VGL
|
P
|
Gate OFF Voltage
|
|
NC
|
---
|
No connection
|
|
NC
|
---
|
No connection
|
|
VGH
|
P
|
Gate ON Voltage
|
|
LED+
|
P
|
LED Anode
|
|
LED+
|
P
|
LED Anode
|
