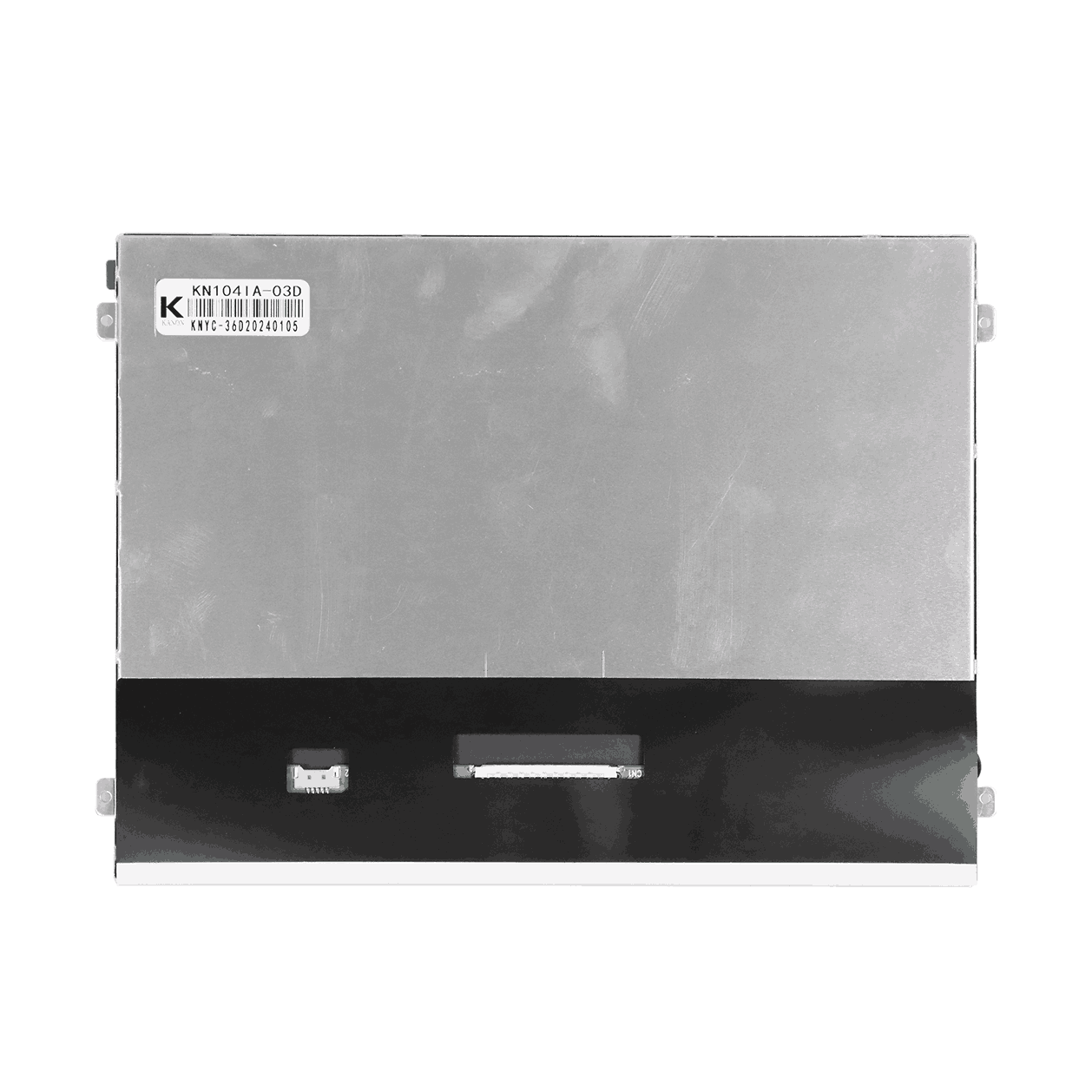

10.4 Inch Touch Screen Lcd Display Module

Pin Assignment

Note: 1. Pin1 is reversed as BIST function for test, don't connect signal to this pin, keep floating.

2. SEL6/8 is used for selecting 6bit/8bit LVDS data input, L or NC: 8bit; High:6bit.

3. Pin21,22,23 are used asSPI interface for OTP function, don't connect any signal to these pin, and don't short them, keep floating.

4. Reverse pin is used for selecting scanning direction.

Pin No.	Symbol	I/O	Function	Remark
1	NC	I	Reserved as BIST function for INX test	Note 1
2	GND	P	Ground
3	Rin3+	I	Positive LVDS differentialdata input (+)
4	Rin3-	I	Negative LVDS differentialdata input (-)
5	GND	P	Ground
6	CLK+	I	Clock signal (+)
7	CLK-	I	Clock signal (-)
8	GND	P	Ground
9	Rin2+	I	Positive LVDS differential data input (+)
10	Rin2-	I	Negative LVDS differential data input (-)
11	GND	P	Ground
12	Rin1+	I	Positive LVDS differential data input (+)
13	Rin1-	I	Negative LVDS differentialdata input (-)
14	GND	P	Ground
15	Rin0+	I	Positive LVDS differential data input (+)
16	Rin0-	I	Negative LVDS differential data input (-)
17	GND	P	Ground
18	NC	-	No Connection
19	GND	P	Ground
20	SEL6/8	I	Selection for 6 bits/8bit LVDS data input Low or NC : 8 bit input mode High : 6 bit input mode	Note 2
21	NC	I	Reversed as EE_WP for OTP function	Note 3
22	NC	I	Reversed as EESDA for OTP function	Note 3
23	NC	I	Reversed as EE_SCL for OTP function	Note 3
24	Reverse	I	Reverse panel function (Display rotation)	Note 4
25	GND	P	Ground
26	GND	P	Ground
27	GND	P	Ground
28	VDD	P	Power supply:+3.3V
29	VDD	P	Power supply:+3.3V
30	VDD	P	Power supply:+3.3V

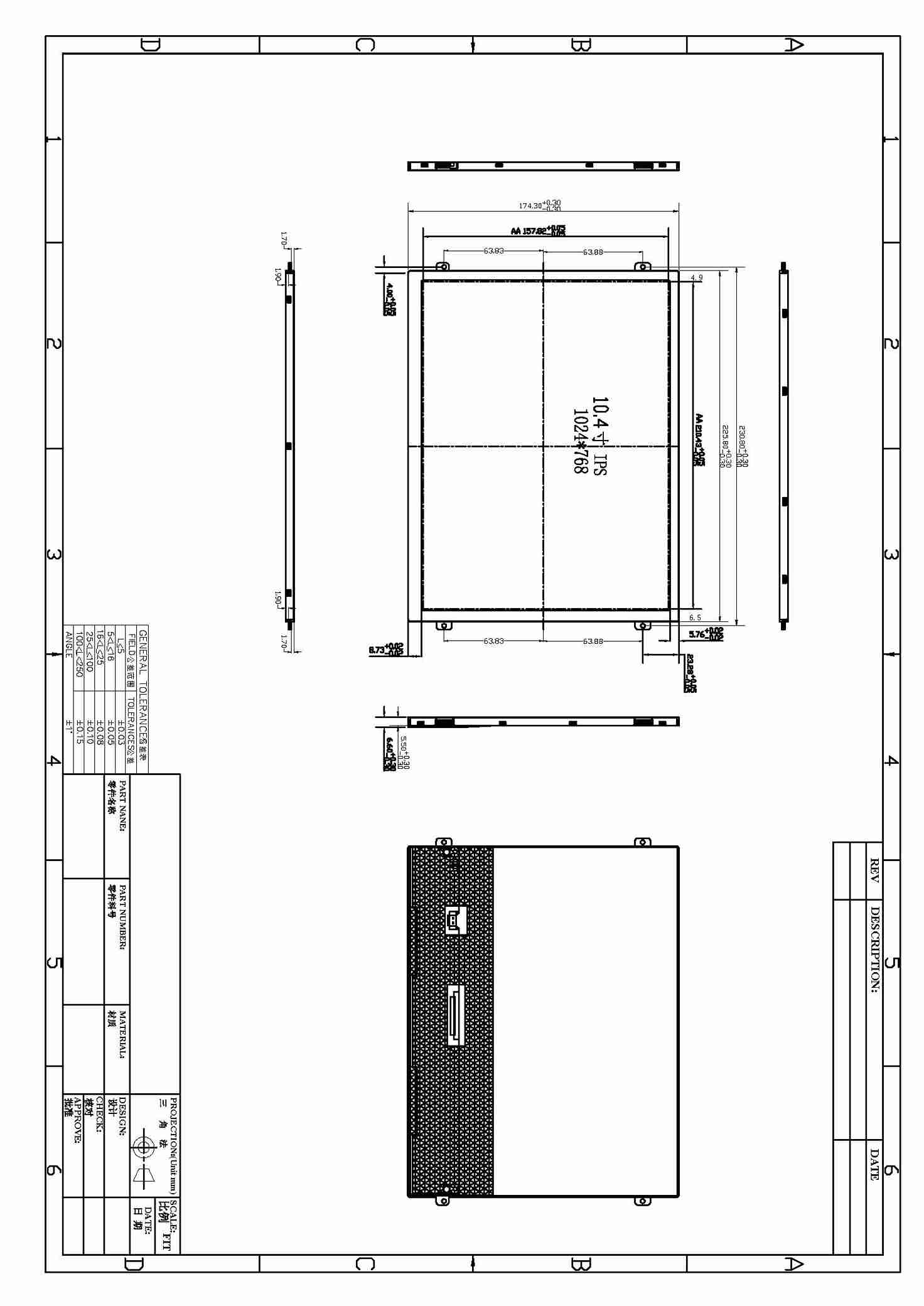

Mechanical Drawing

Mechanical Drawing
