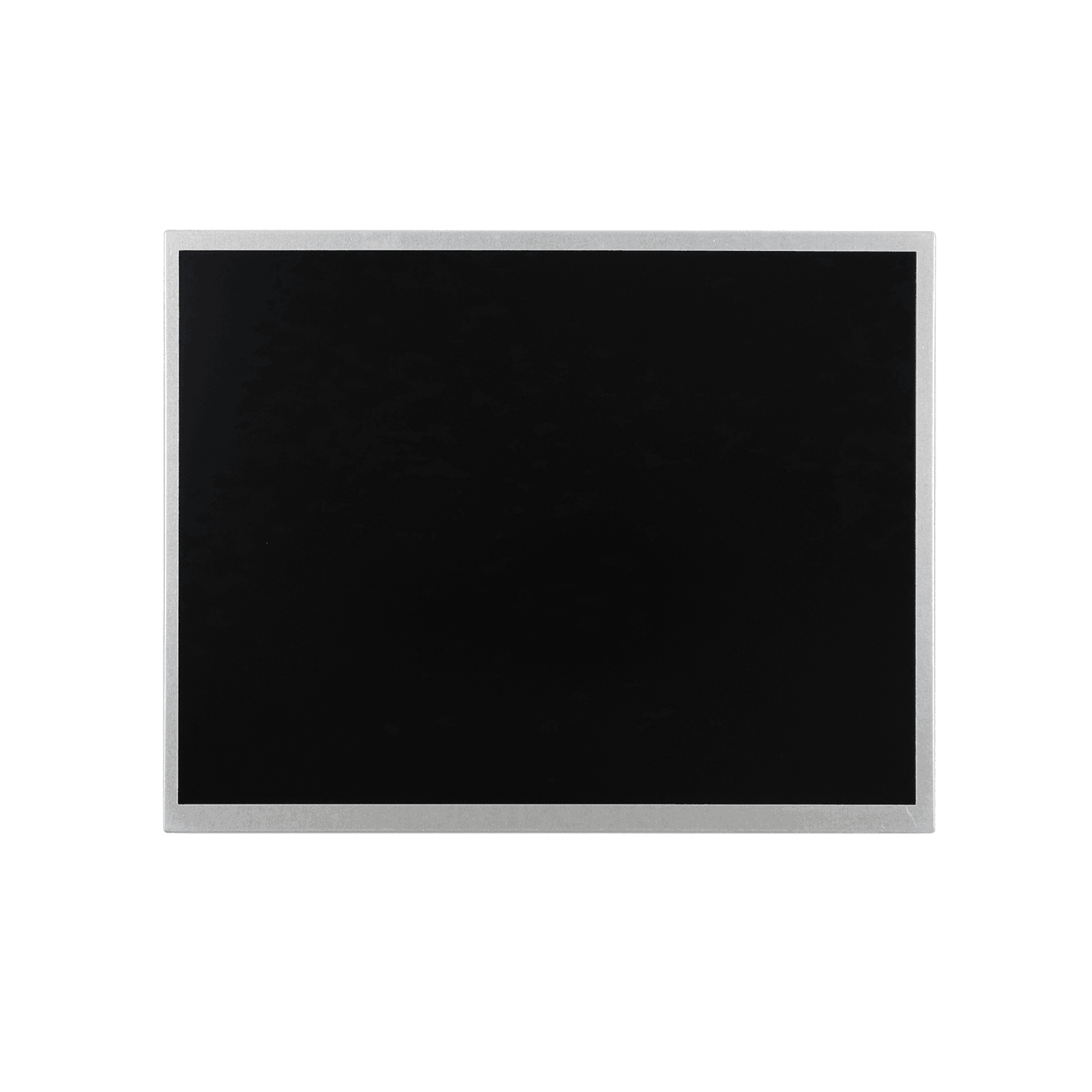

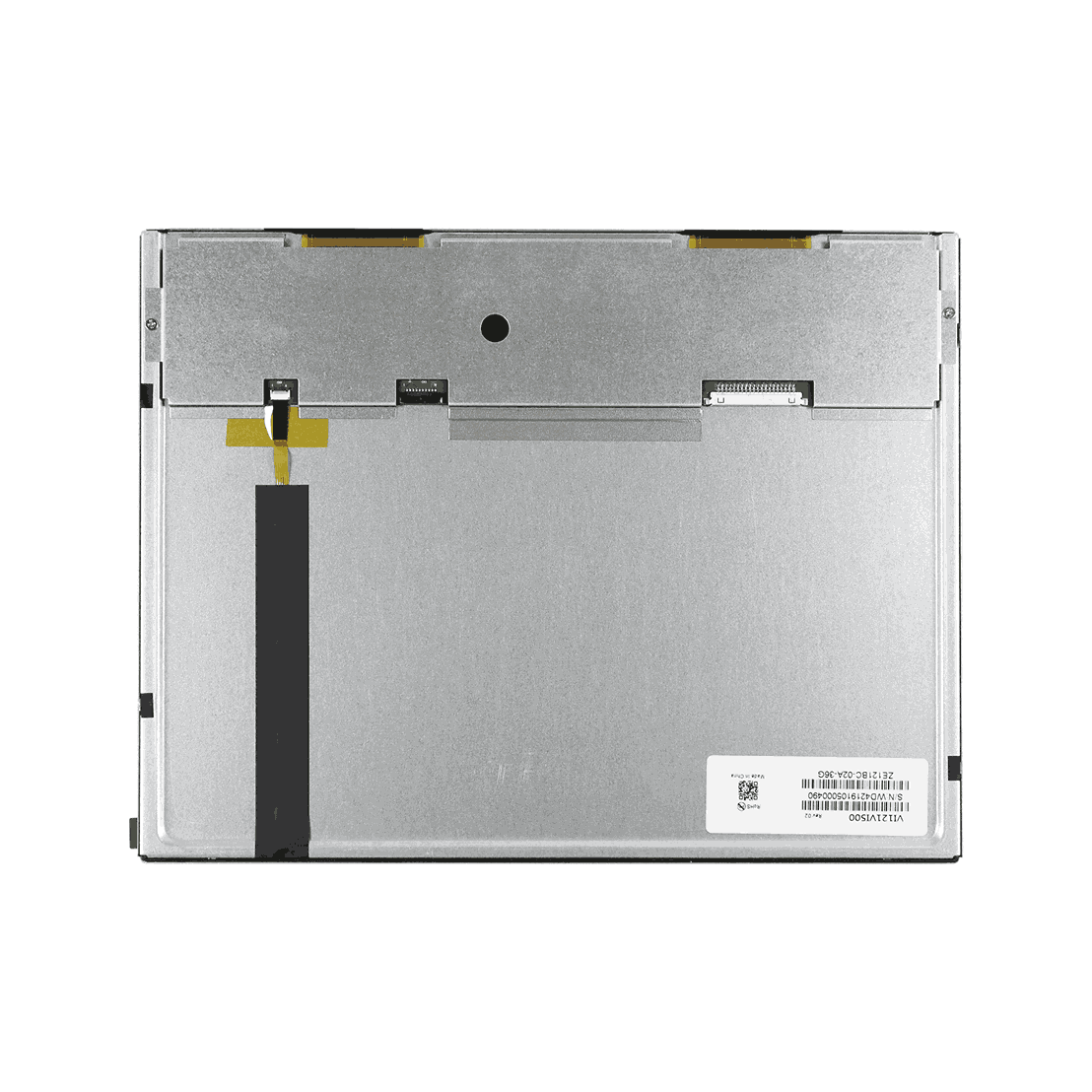

12.1" Lcd Module Display Screen
Model Number :
YY121IAD84XG500I1Display Size :
12.1 inch (Diagonal)Brightness :
500cd/m2Resolution :
1024*768Thickness :
8.4 MMDriver Element :
a-Si TFT active matrixWarranty :
12 MonthsManufacturer :
CloudSense OptiTech|
Pin No.
|
Name
|
Description
|
Remark
|
|
1
|
RX3+
|
Differential Data Input, CH3 (Positive)
|
|
|
2
|
RX3-
|
Differential Data Input, CH3 (Negative)
|
|
|
3
|
NC
|
NC
|
|
|
4
|
SEL68
|
LVDS
|
Note-3-4
|
|
5
|
GND
|
Ground
|
|
|
6
|
RXC+
|
Differential Clock Input (Positive)
|
|
|
7
|
RXC-
|
Differential Clock Input(Negative)
|
|
|
8
|
GND
|
Ground
|
|
|
9
|
RX2+
|
Differential Data Input, CH2 (Positive)
|
|
|
10
|
RX2-
|
Differential Data Input,CH2 (Negative)
|
|
|
11
|
GND
|
Ground
|
|
|
12
|
RX1+
|
Differential Data Input, CH1 (Positive)
|
|
|
13
|
RX1-
|
Differential Data Input, CH1 (Negative)
|
|
|
14
|
GND
|
Ground
|
|
|
15
|
RX0+
|
Differential Data Input, CH0 (Positive)
|
|
|
16
|
RX0-
|
Differential Data Input, CH0 (Negative)
|
|
|
17
|
reLR
|
Horizontal Reverse Scan Control,
Low➡NormalMode.
High➡Horizontal Reverse Scan
|
|
|
18
|
reUD
|
Vertical Reverse Scan Control,
Low➡Normal Mode,
High➡Vertical Reverse Scan
|
|
|
19
|
VCC
|
Power supply
|
Note-3-4
|
|
20
|
VCC
|
Power supply
|
Note-3-4
|

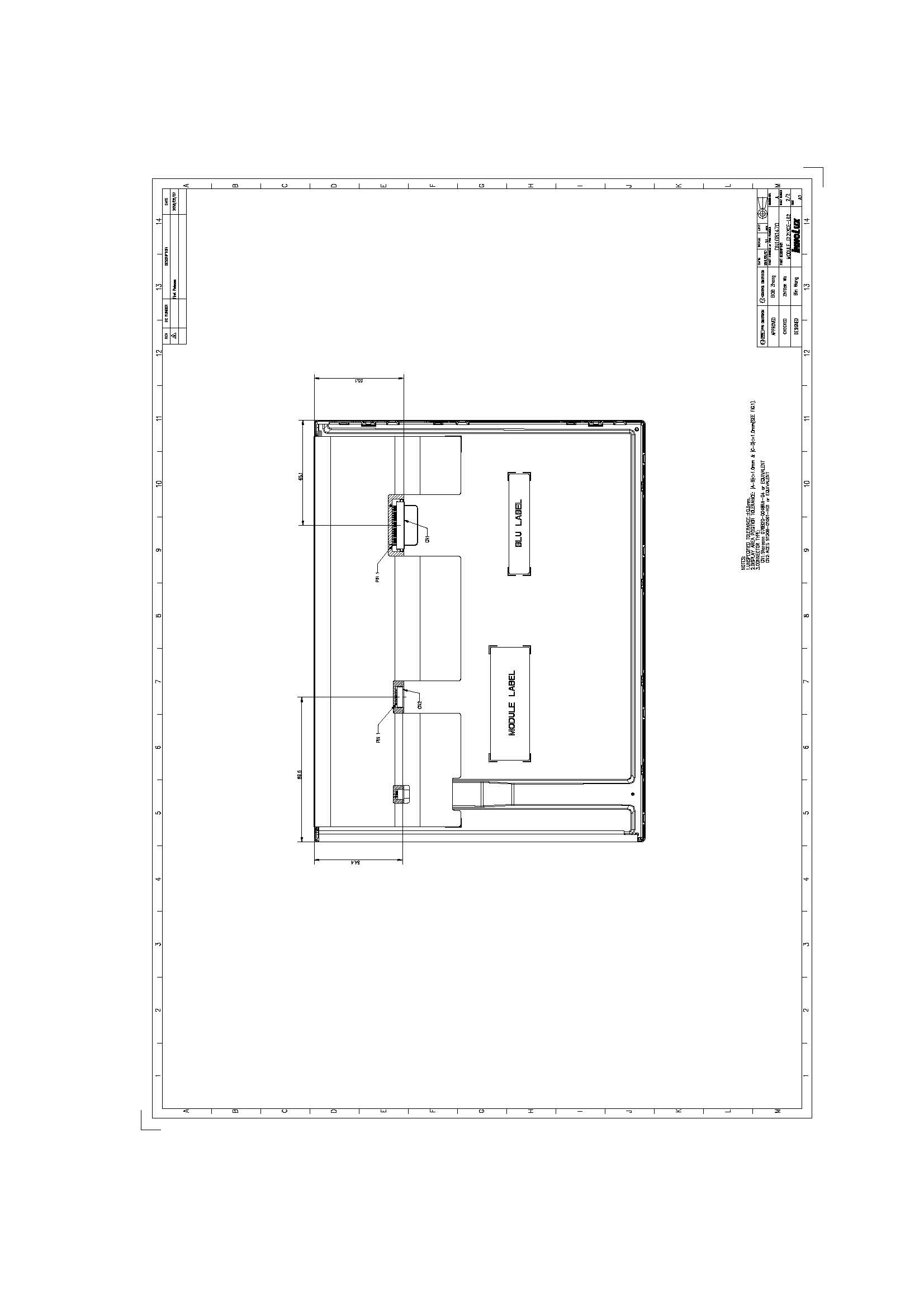

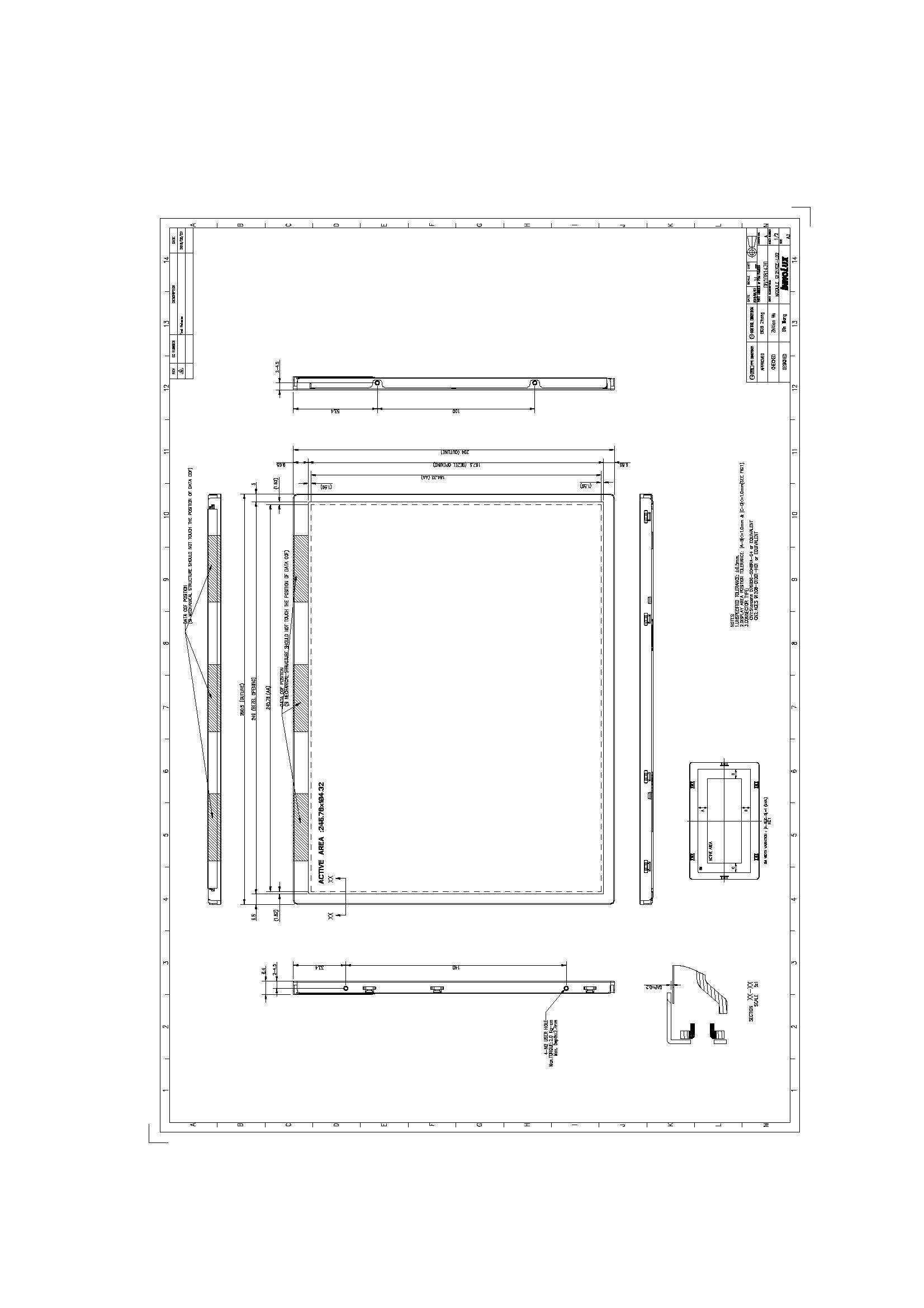

Mechanical Drawing
