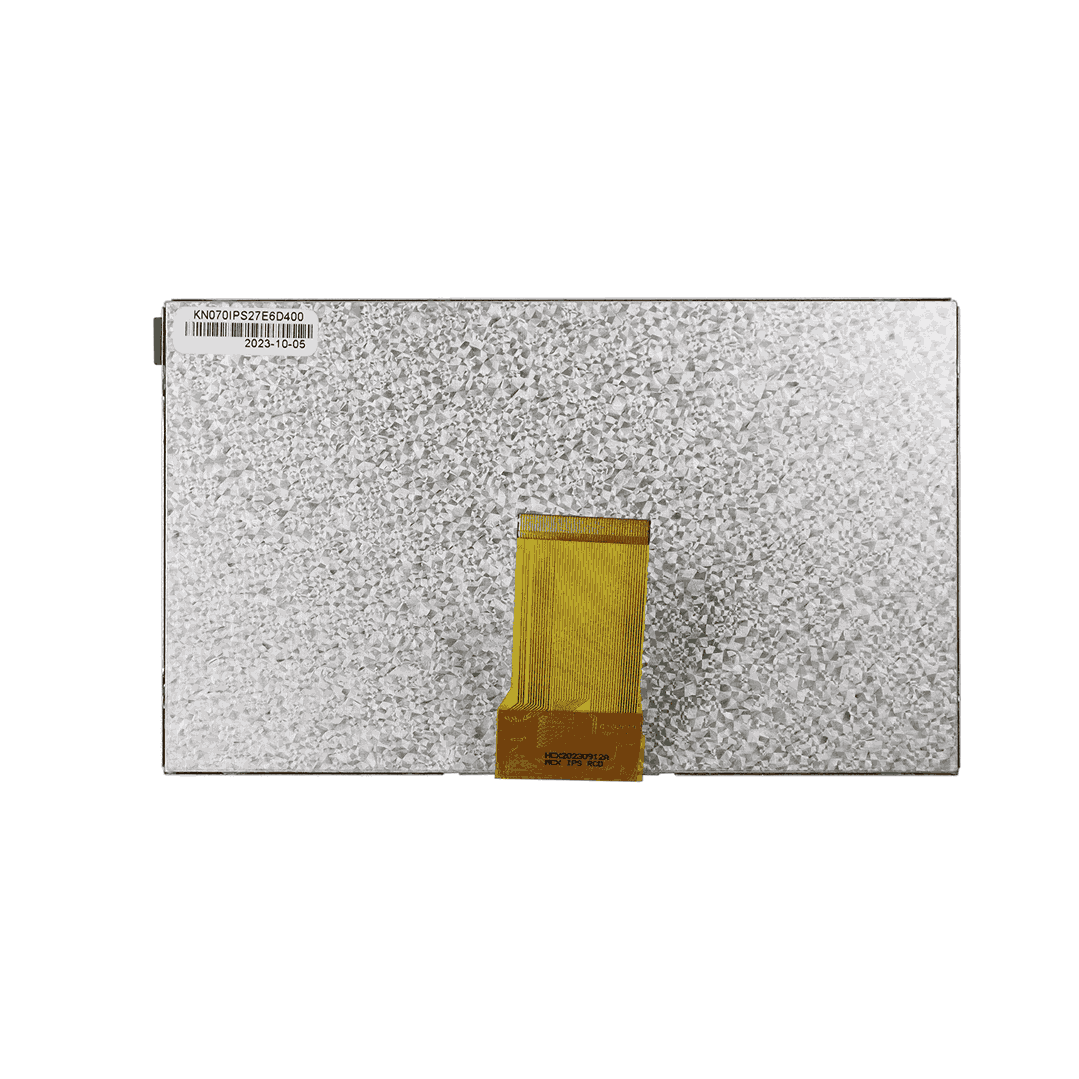

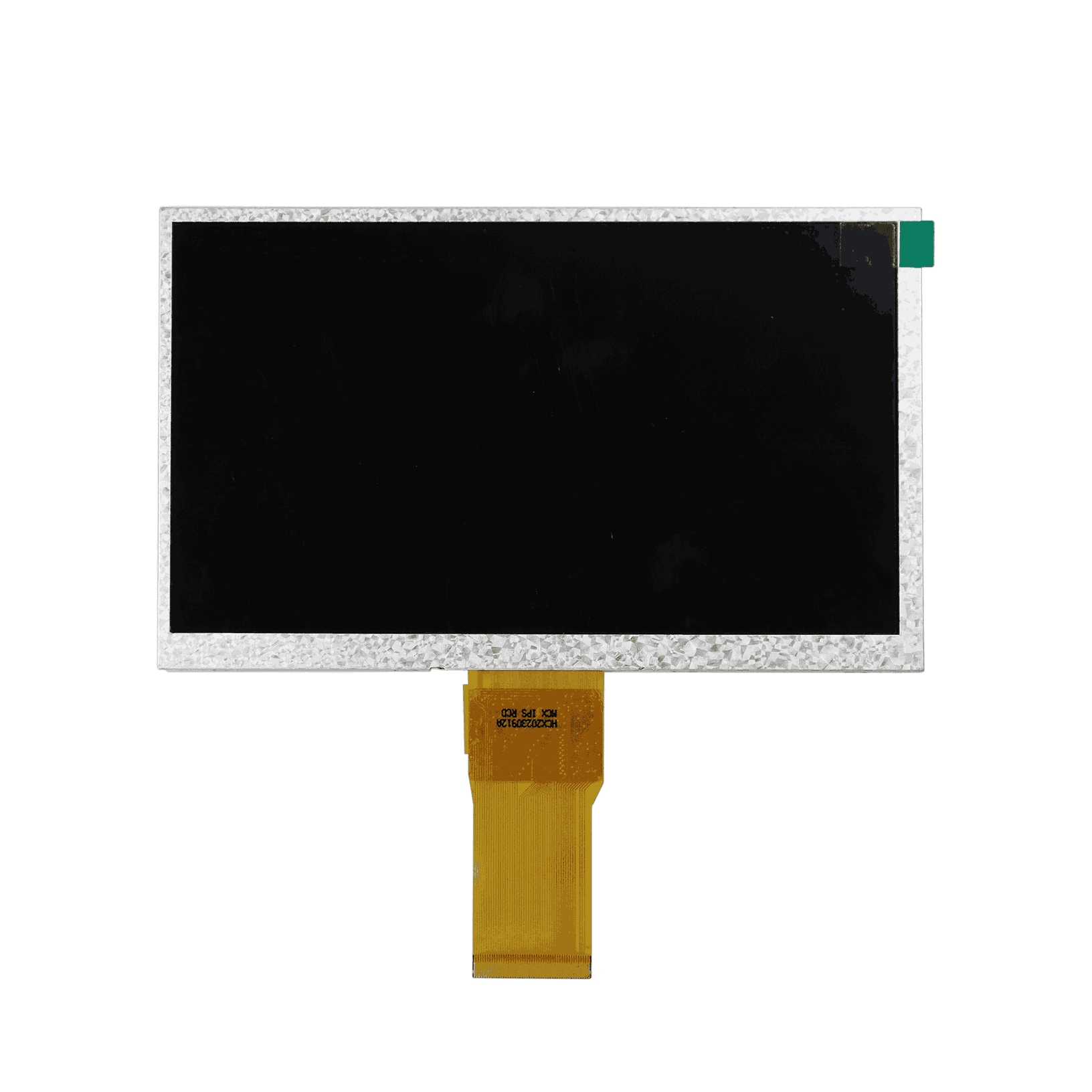

7 Inch Touch Screen Lcd Display Module

7.0" Touch Screen Lcd Module

Model Number :
YY070IAF35WS300B1
Display Size :
7 inch (Diagonal)
Brightness :
300cd/m2
Resolution :
1024*600
Thickness :
3.5 MM
Driver Element :
a-Si TFT active matrix
Warranty :
12 Months
Manufacturer :
CloudSense OptiTech

Inquire Now

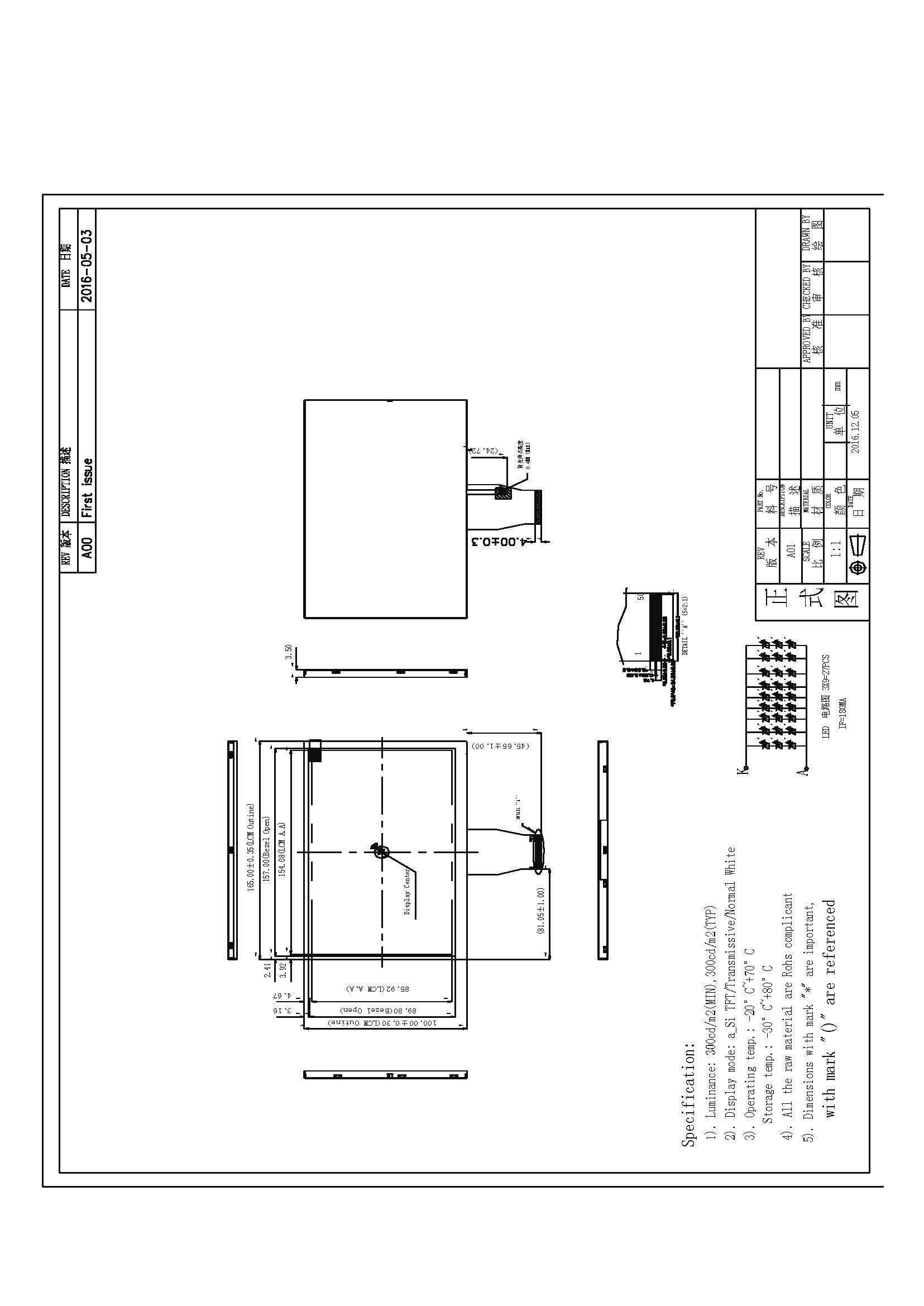

Product Details

Pin Assignment

Note1:DE/SYNC modo select .normally pull high H:DE modo L:HS/VS mode

Note2: Source right or left sequence control. L/R="L",shift left:last data=S1<-52...S1200=first data L/R="H",shift right:first data=S1->5S2...S1200=last data

Note3: gate up or down scan control. U/D="L" , down shift :G1->G2...->G480; U/D="H", up shift: G1<-G2...<-G480

Note4:Global reset pin. Active low to enter reset state. Suggest to connecting with an RC reset circuit for stability.Normally pull high.

Note5: Dithering sotting: DITH="L" 8bit resolution (default setting) DITH="H" 6bit resolution (last 2 bits of input data truncated)

Pin No.	Symbol	Function	Remark
1	A	Power for LED backlight(Anode)
2	A	Power for LED backlight(Anode)
3	K	Power for LED backlight(Cathodo)
4	K	Power for LED backlight(Cathodo)
5	GND	Powor ground
6	VCOM	Common voltage
7	VDD	Digital Power
8	MODE	DE/SYNC modo solect. Normally pull high	Note 1
9	DE	Data Input Enablo
10	VS	Vertical sync input. Negative polarity
11	HS	Horizontal sync input. Nogative polarity
12	B7	Blue data(MSB)
13	B6	Blue data
14	B5	Blue data
15	B4	Bluo data
16	B3	Blue data
17	B2	Blue data
18	B1	Blue data
19	B0	Blue data(LSB)
20	G7	Green data(MSB)
21	G6	Green data
22	G5	Green data
23	G4	Green data
24	G3	Green data
25	G2	Green data
26	G1	Green data
27	G0	Green data(LSB)
28	R7	Red data(MSB)
29	R6	Rod data
30	R5	Red data
31	R4	Red data
32	R3	Red data
33	R2	Red data
34	R1	Red data
35	R0	Red data(LSB)
36	GND	Power Ground
37	DCLK	Clock input
38	GND	Power Ground
39	L/R	Left or Right Display Control	Note 2
40	UPDN	Up / Down Display Control	Note 3
41	VGH	Positive Power for TFT
42	VGL	Negative Power for TFT
43	AVDD	Analog Power
44	RESET	Global roset pin.	Note 4
45	NC	No connoction
46	VCOM	Common Voltage
47	DITH	Dithoring setting	Note 5
48	GND	Power Ground
49	NC	No connection
50	NC	No connoction
