8 Inch TFT Touch Screen Panel Lcd Display

8 Inch TFT Touch Screen Panel Lcd Display

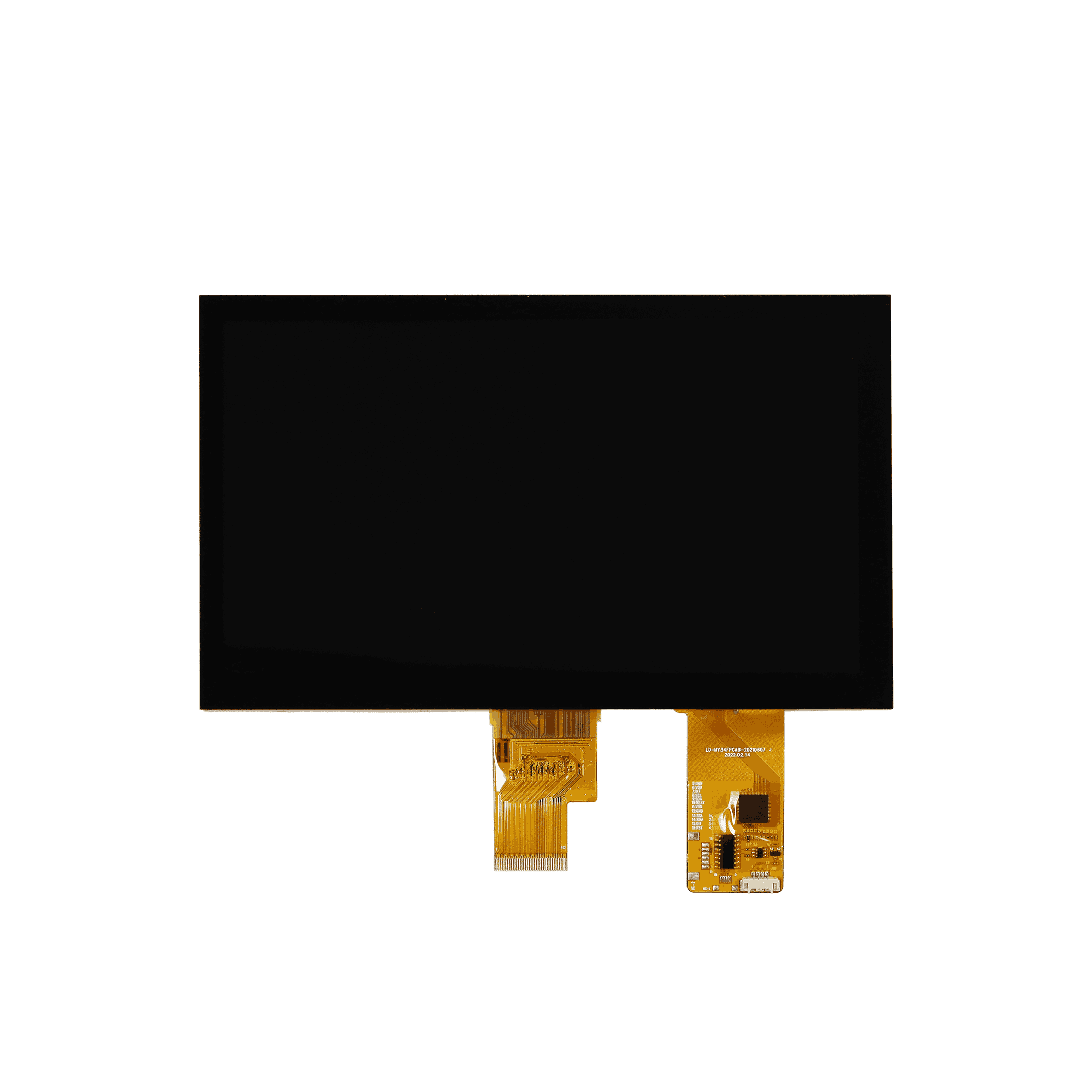

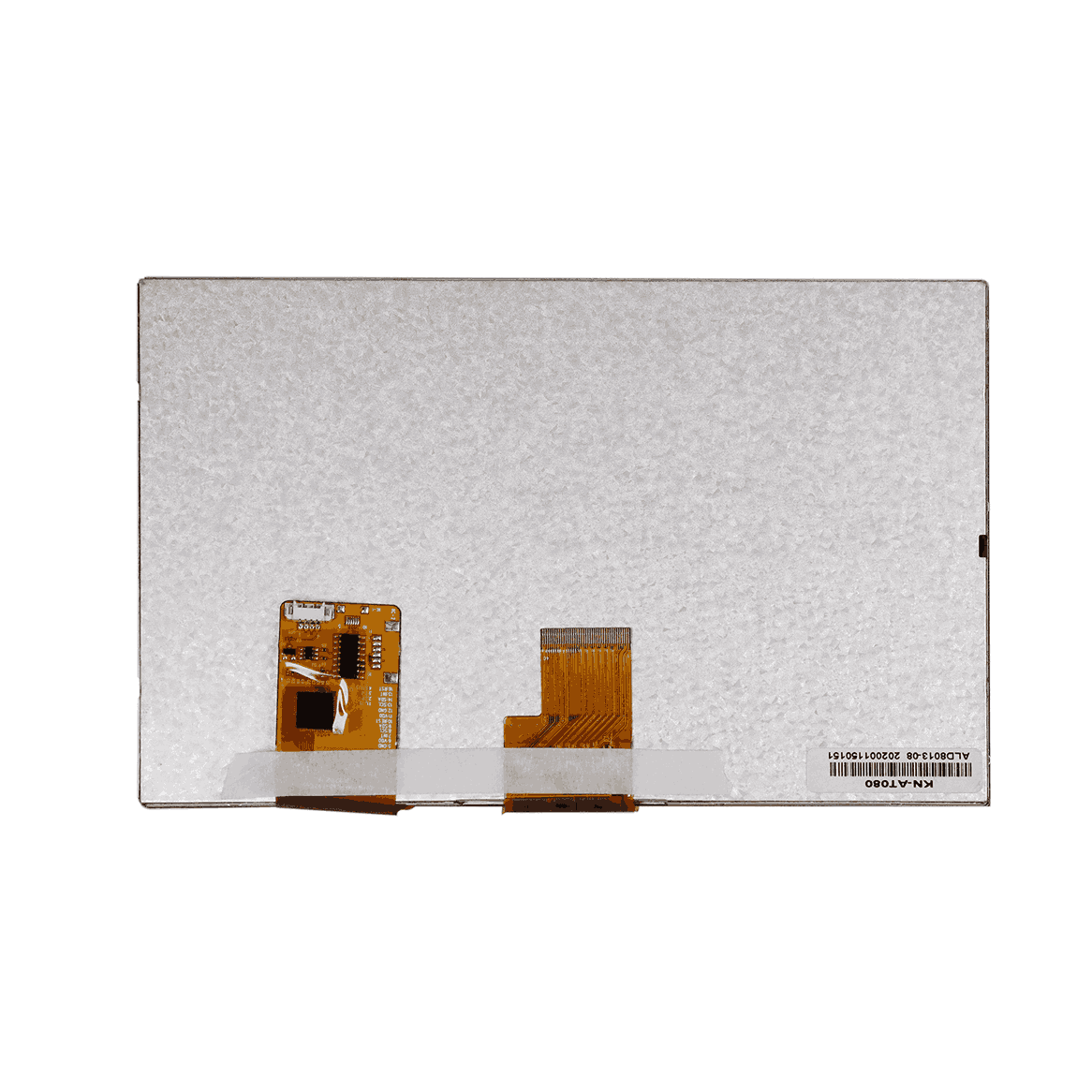

8.0 Inch Touch Screen TFT Lcd Display Panel Module

  • Model Number :

    KN-AT080-ALD8013-08
  • Display Size :

    8 inch (Diagonal)
  • Resolution :

    1024*600
  • Thickness :

    5.0 MM
  • Driver Element :

    a-Si TFT active matrix
  • Warranty :

    12 Months
  • Manufacturer :

    CloudSense OptiTech

Pin Assignment

Pin No.
Symbol
I/O
Function
Remark
1
NC
---
No connection

2
VDD
P
Power Supply

3
VDD
P
Power Supply

4
NC
---
Only for INX test

5
NC
---
Only for INX test

6
NC
---
Only for INX test

7
GND
P
Ground

8
Rxin0-
I
-LVDS Differential Data Input
R0-R5, G0
9
Rxin0+
I
+LVDS Differential Data Input
10
GND
P
Ground

11
Rxin1-
I
-LVDS Differential Data Input
G1~G5, B0,B1
12
Rxin1+
I
+LVDS Differential Data Input
13
GND
P
Ground

14
Rxin2-
I
-LVDS Differential Data Input
B2-B5,HS,VS, DE
15
Rxin2+
I
+LVDS Differential Data Input
16
GND
P
Ground

17
RxCLK-
I
-LVDS Differential Data Input
LVDS CLK
18
RxCLK+
I
+LVDS Differential Data Input
19
GND
P
Ground

20
Rxin3-
I
-LVDS Differential Data Input
R6, R7, G6, G7, B6, B7
21
Rxin3+
I
-LVDS Differential Data Input
22
GND
I
Ground

23
NC
---
No connection

24
NC
---
No connection

25
GND
P
Ground

26
NC
---
No connection

27
NC
---
No connection

28
NC
---
No connection

29
AVDD
P
Power for Analog Circuit

30
GND
P
Ground

31
LED-
P
LED Cathode

32
LED-
P
LED Cathode

33
NC
---
No connection

34
NC
---
No connection

35
VGL
P
Gate OFF Voltage

36
NC
---
No connection

37
NC
---
No connection

38
VGH
P
Gate ON Voltage

39
LED+
P
LED Cathode

40
LED+
P
LED Cathode


Mechanical Drawing
