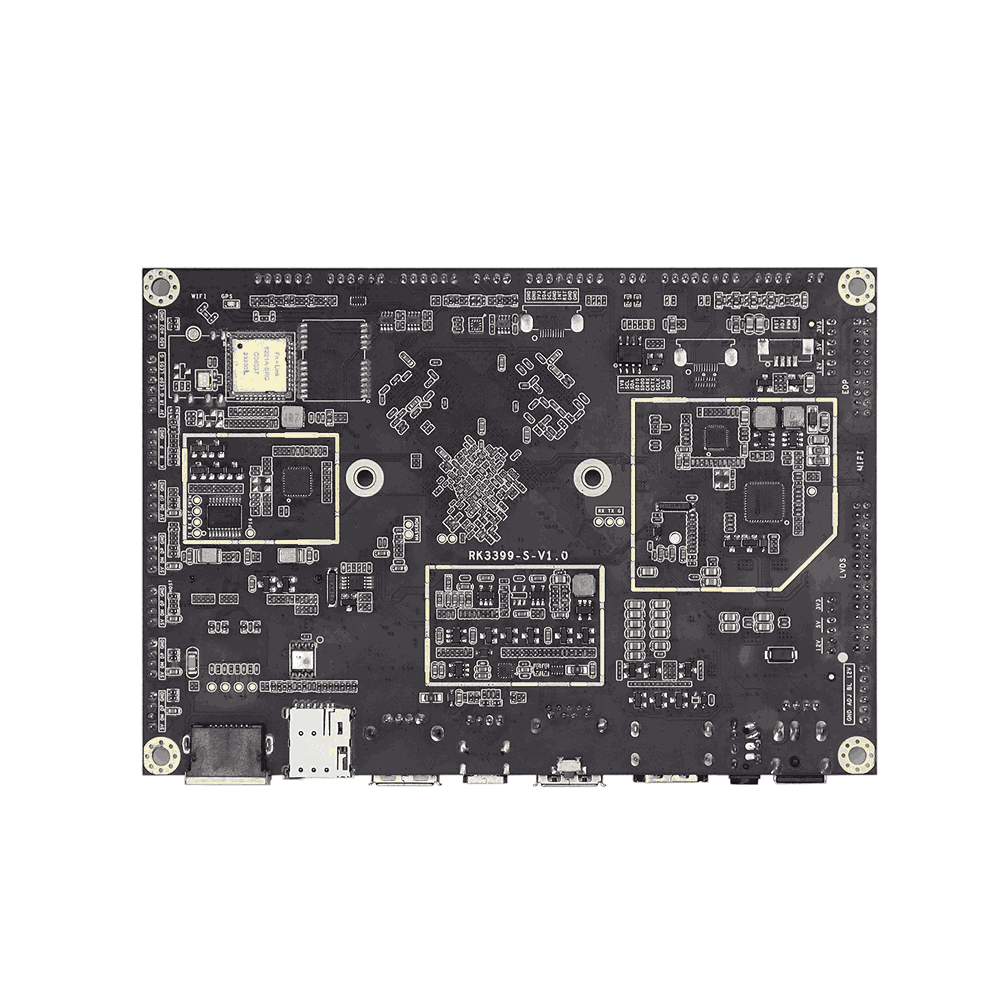

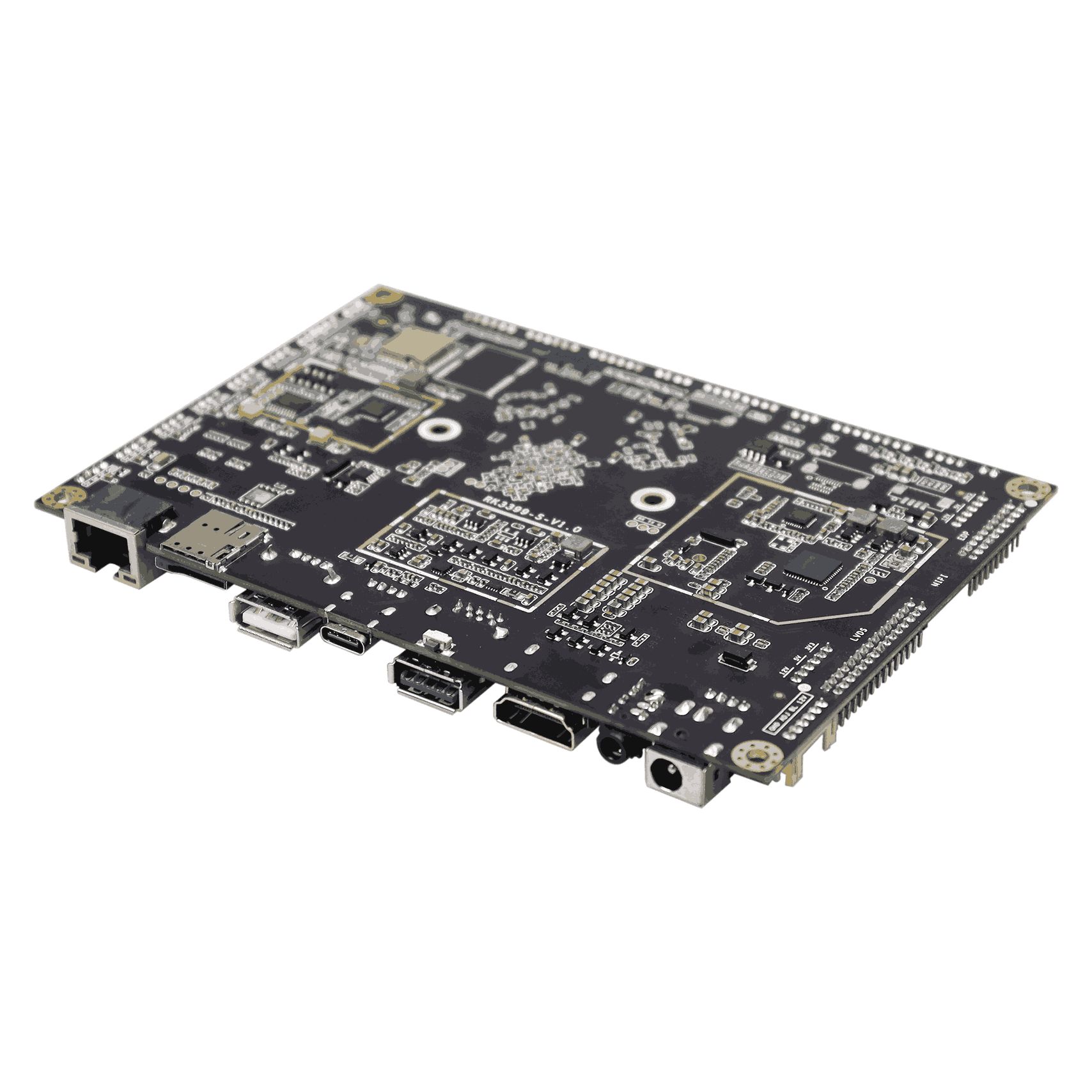

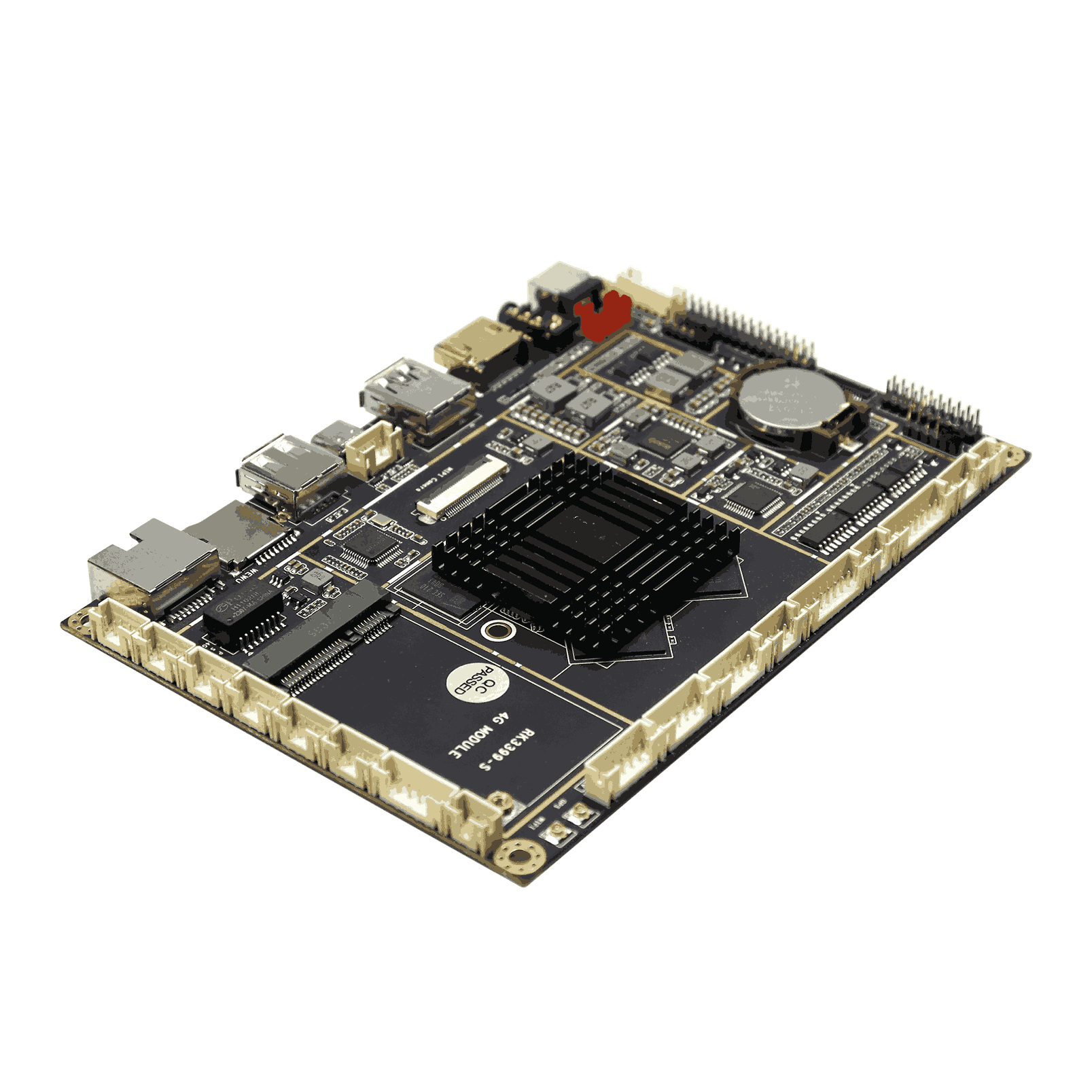

LCD Android Motherboard PCBA Driver Control Board
Model Number :
RK3399-SWarranty :
12 MonthsManufacturer :
CloudSense OptiTechCPU :
Rockchip
CPU
|
Rockchip RK3399 (28nm HKMG process)
ARM 6 core 64 bit processor, dual core Cortex-A72 (large core)+quad core Cortex- A53 (small core), main frequency up to 1.8GHz
|
GPU
|
Mail-T860 GPU MP4 quad core GPU Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 Support AFBC (frame buffer compression)
|
Memory
|
LPDDR4 2G (Up to 4G)
|
built-in storage capacity
|
eMMC 16GB (8G/32G/64G/128G optional)
TF Card Extension (can be used to extend SSDs)
|
Networking
|
Support RJ45 100M network interface and Ethernet
|
Support 2.4G WiFi and Wi Fi 802.11b/g/n protocol
|
|
Support 5G dual band WiFi (optional)
|
|
Support Bluetooth function, V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 (optional)
|
|
Support 4G/5G function and all network communication (optional)
|
|
GPS navigation
|
Built in GPS module, sensitivity: - 159dBm, receiving frequency: 1575.42MHz, satellite communication
Channel: 20 channels, positioning accuracy:
|
image rotation
|
Support 0 degree, 90 degree, 180 degree, 270 degree manual rotation
Support Gravity Sensor Auto Screen Rotation (Optional)
|

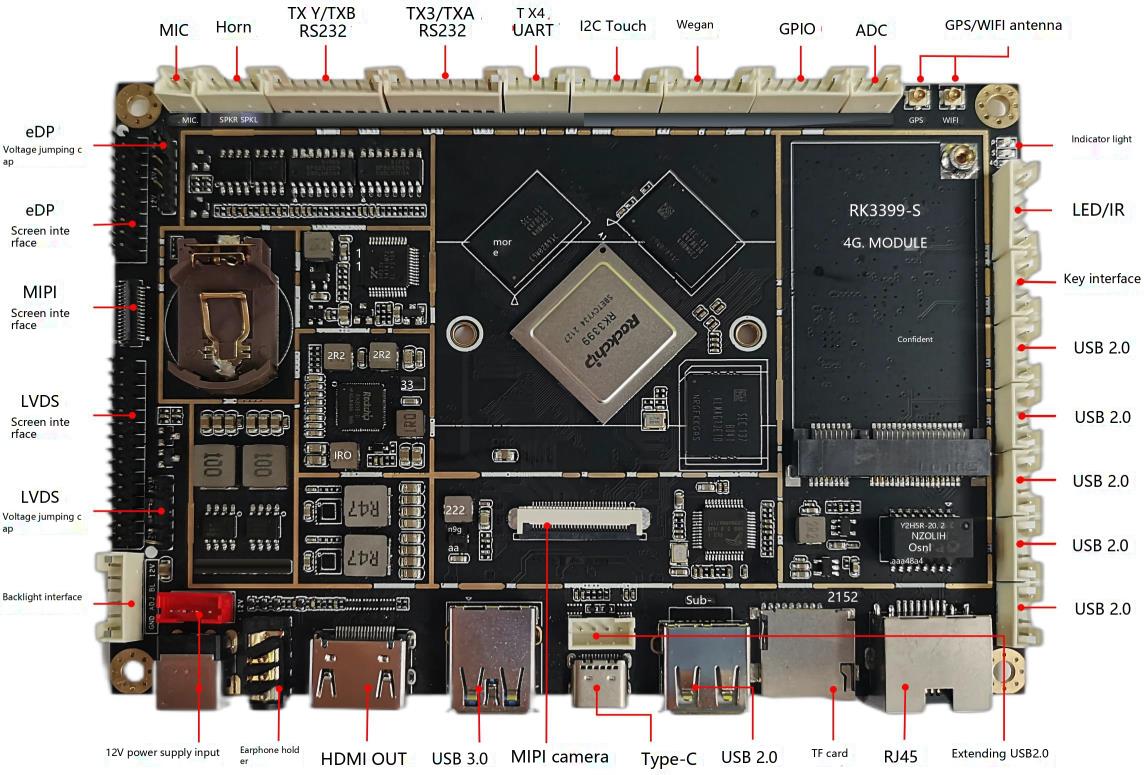

display interface
|
1 * eDP interface (eDP1.3, 4lanes with 10.8Gbps), supporting 3.3V/5V/12V power supply 1 * LVDS interface (single/dual, 6-bit/8-bit), supporting 7 "- 108" display, up to 1080P 60Hz output, supporting 3.3V/5V/12V power supply
1 * HDMI 2.0, support up
to 4K 60Hz output, support HDCP 1.4/2.2 1 * MIPI screen interface, up to 1080P 60Hz output, dual screen differential display
function |
Audio Interface
|
1 * Horn output (2 * 18W 4R THD<10%)
1* headset output/input
1* microphone input
|
Hardware watchdog
|
hardware watchdog support
|

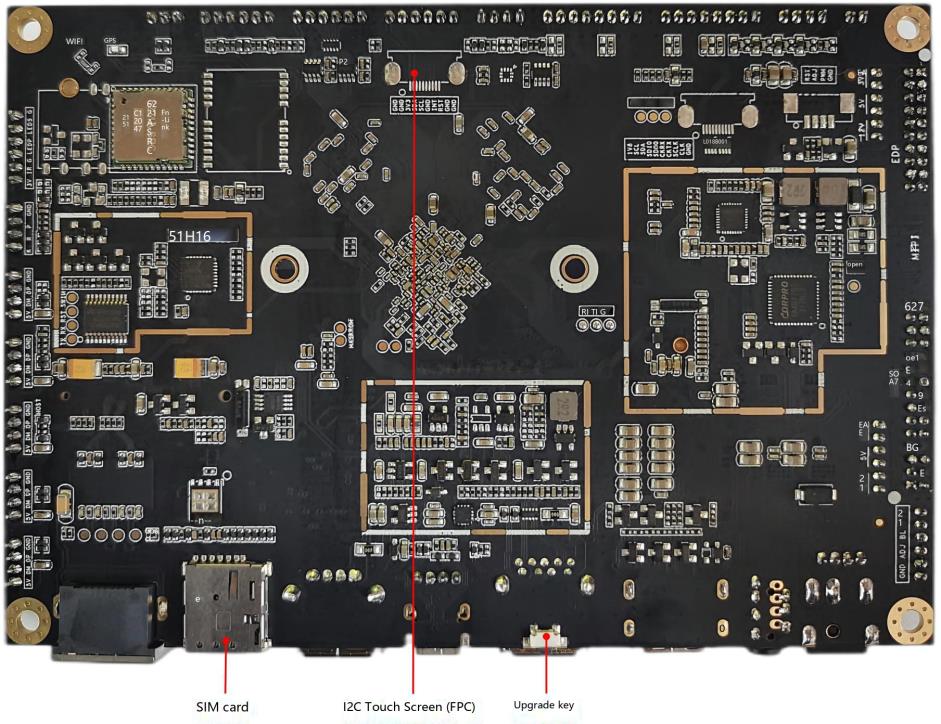

touch screen interface
|
1 * I 2 C interface (support multi-point resistance touch, multi-point capacitance touch) Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nano film touch, multi-point acoustic touch, multi-point optical touch, etc
|
Camera interface
|
1 * MIPI camera function, supporting 500W/1300W pixels (optional)
Support 800W-USB interface camera (optional)
|
RTC
|
Built-in real-time clock power supply battery, support timer on/off
|
USB
|
supply battery, support timer on/off USB
|
PCIe
|
1 * Mini PCIe (for 4G module)
|
SIM
|
1 * SIM card holder, used to expand 4G module with Mini PCIe
|
Infrared reception
|
1* infrared receiver, support infrared remote control function, support remote control power on
|
LED
|
1 * power status LED (red), 1 * system LED (blue, flashing by default)
|
Pushbutton
|
1*Reset button,1*Power button,1*Upgrade button
|
Serial port
|
4*RS232,2*UART TTL
|
IO port
|
4 * IO port, supporting input or output Wergen Interface 1* input connector, 1* output connector
|
Recommended power adapter
|
Input: AC100-240V, 50-60HZ, output: DC12V, 5.5mm/2.1mm DC head
2A-5A (required surge voltage is less than 18V, ripple voltage is less than 100mV)
|

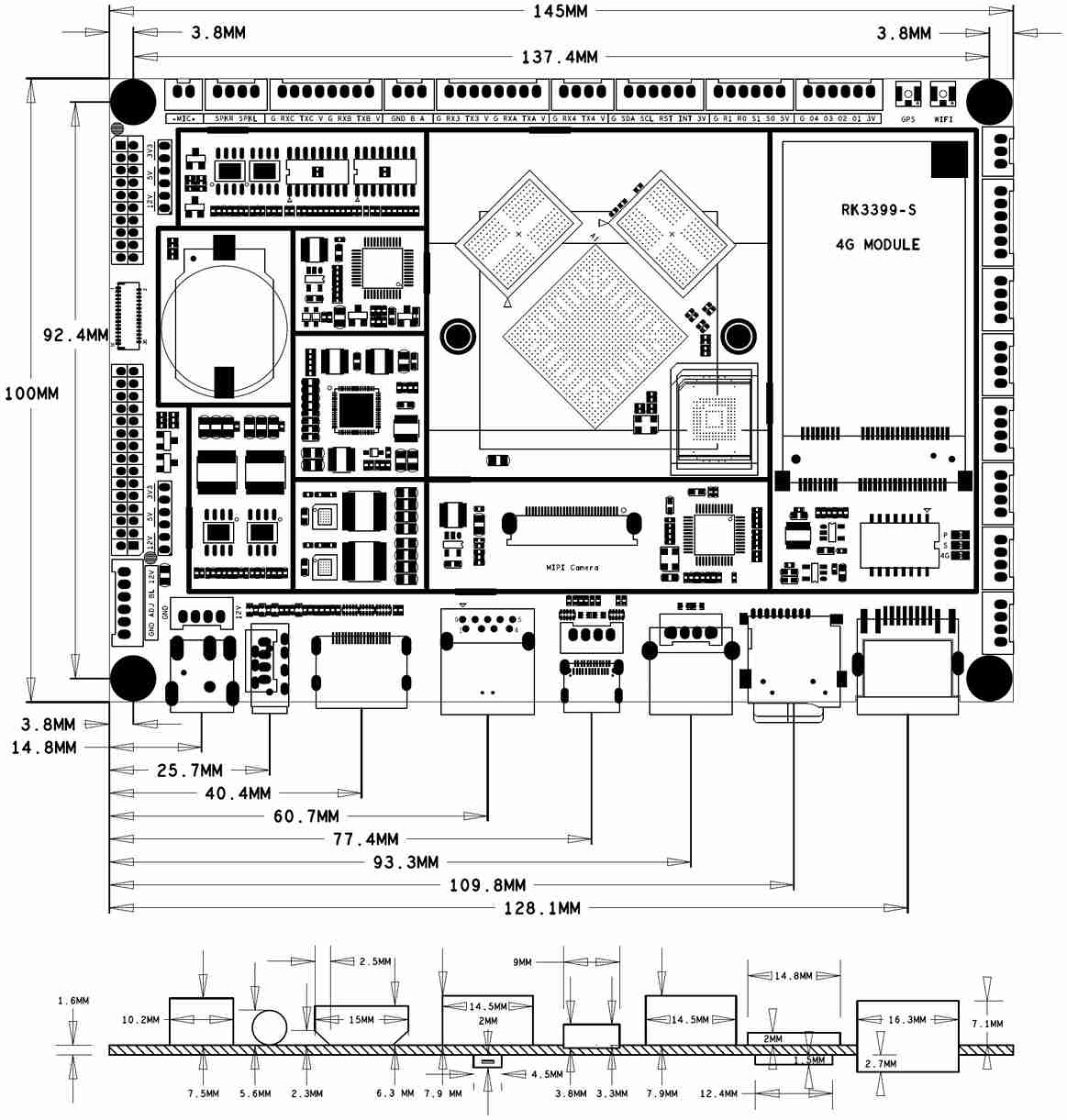

PCBA Size
Main board size: 145 * 100 * 12mm
Mainboard height: front ≤ 8mm,
back ≤ 3mm PCB layers: 8
PCB size: 145 * 100 * 1.6mm
PCB color: black
PCB process: gold deposition
Screw hole specification: Φ 3mm*4
Serial number
|
Definition
|
Attributes
|
Description
|
1
|
GND
|
land
|
land
|
2
|
GND
|
land
|
land
|
3
|
12V_IN
|
Power supply
|
12V power supply
|
4
|
12V_IN
|
Power supply
|
12V power supply
|
Serial number
|
Definition
|
Attributes
|
Description
|
1
|
12V
|
Power
|
supply 12V output
|
2
|
12V
|
Power
|
supply 12V output
|
3
|
BLEN
|
Output
|
Backlight enable (5V)
|
4
|
ADJ
|
Output
|
Backlight brightness adjustment (0~5V)
|
5
|
GND
|
land
|
land
|
6
|
GND
|
land
|
land
|
Serial number
|
Definition
|
Attributes
|
Description
|
1
|
POWER
|
Power supply
|
Panel power output 3.3V/5V/12V The specific voltage is selected by the jump cap, the
|
2
|
POWER
|
Power supply
|
|
3
|
POWER
|
Power supply
|
|
4
|
GND
|
land
|
land
|
5
|
GND
|
land
|
land
|
6
|
GND
|
land
|
land
|
7
|
LVDS-A-D0N
|
Output
|
Data output negative
|
8
|
LVDS-A-D0P
|
Output
|
Data output positive
|
9
|
LVDS-A-D1N
|
Output
|
Data output negative
|
10
|
LVDS-A-D1P
|
Output
|
Data output positive
|
11
|
LVDS-A-D2N
|
Output
|
Data output negative
|
12
|
LVDS-A-D2P
|
Output
|
Data output positive
|
13
|
GND
|
land
|
land
|
14
|
GND
|
land
|
land
|
|
|
|
|
15
|
LVDS-A-CLKN
|
Output
|
Data output negative
|
16
|
LVDS-A-CLKP
|
Output
|
Data output positive
|
17
|
LVDS-A-D3N
|
Output
|
Data output negative
|
18
|
LVDS-A-D3P
|
Output
|
Data output positive
|
19
|
LVDS-B-D0N
|
Output
|
Data output negative
|
20
|
LVDS-B-D0P
|
Output
|
Data output positive
|
21
|
LVDS-B-D1N
|
Output
|
Data output negative
|
22
|
LVDS-B-D1N
|
Output
|
Data output positive
|
23
|
LVDS-B-D2N
|
Output
|
Data output negative
|
24
|
LVDS-B-D2N
|
Output
|
Data output positive
|
25
|
GND
|
land
|
land
|
26
|
GND
|
land
|
land
|
27
|
LVDS-B-CLKN
|
Output
|
Data output negative
|
28
|
LVDS-B-CLKP
|
Output
|
Data output negative
|
29
|
LVDS-B-D3N
|
Output
|
Data output negative
|
30
|
LVDS-B-D3P
|
Output
|
Data output negative
|
